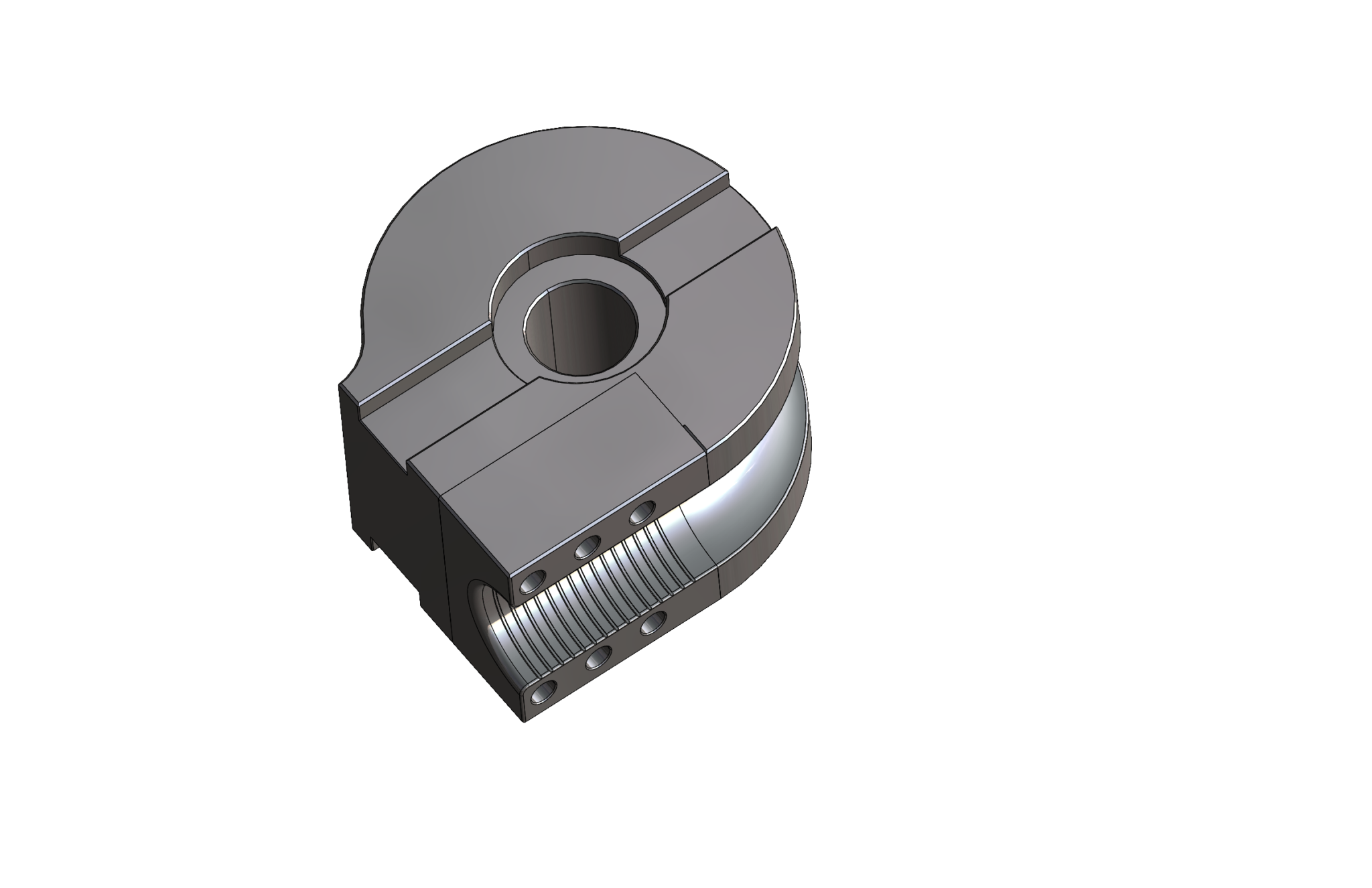

Bend Former
The primary precision tool that defines the Center Line Radius (CLR) and profile of every bend.

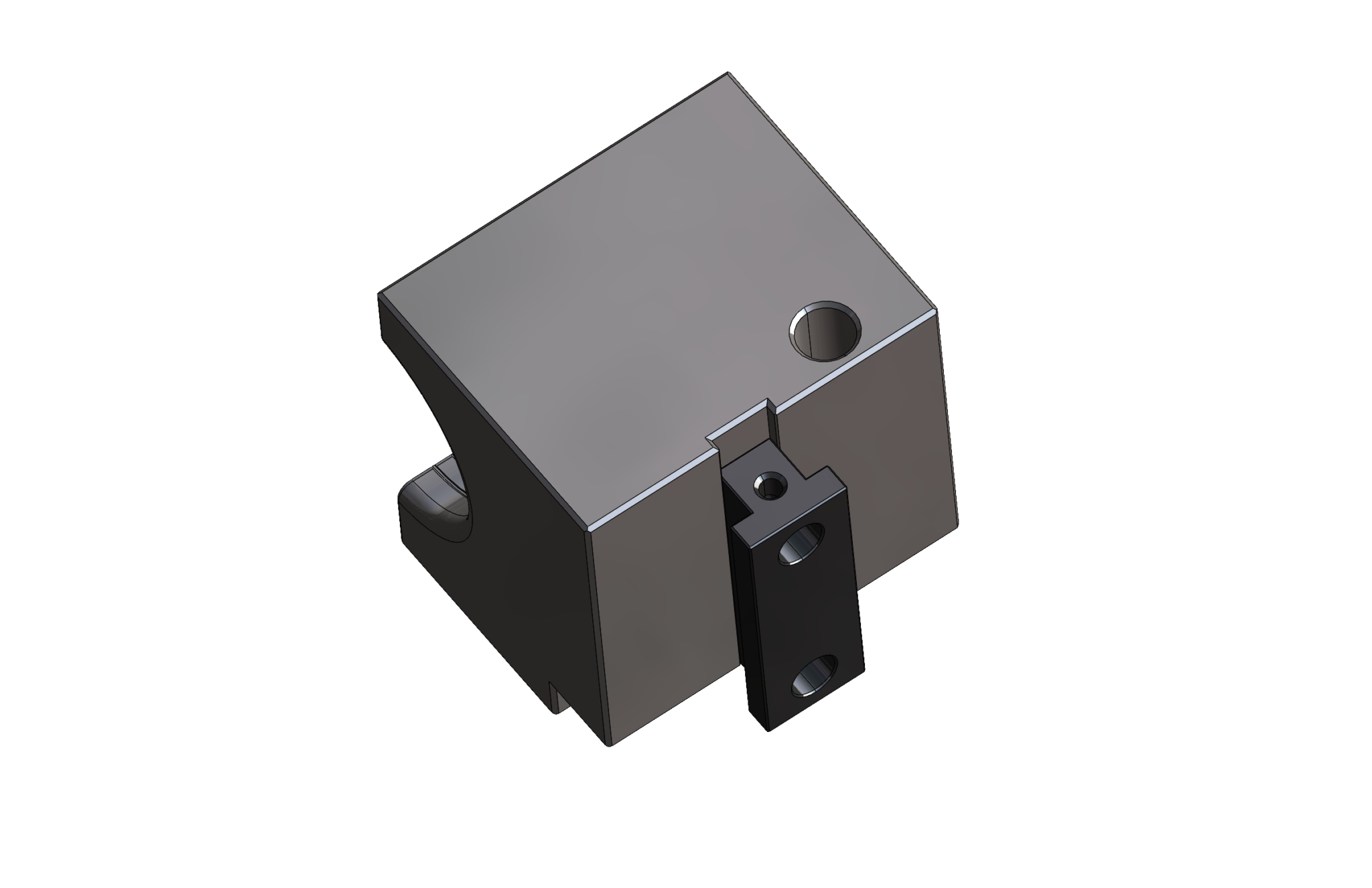

Clamp Die
Provides the critical grip force required for precise, slip-free bends.

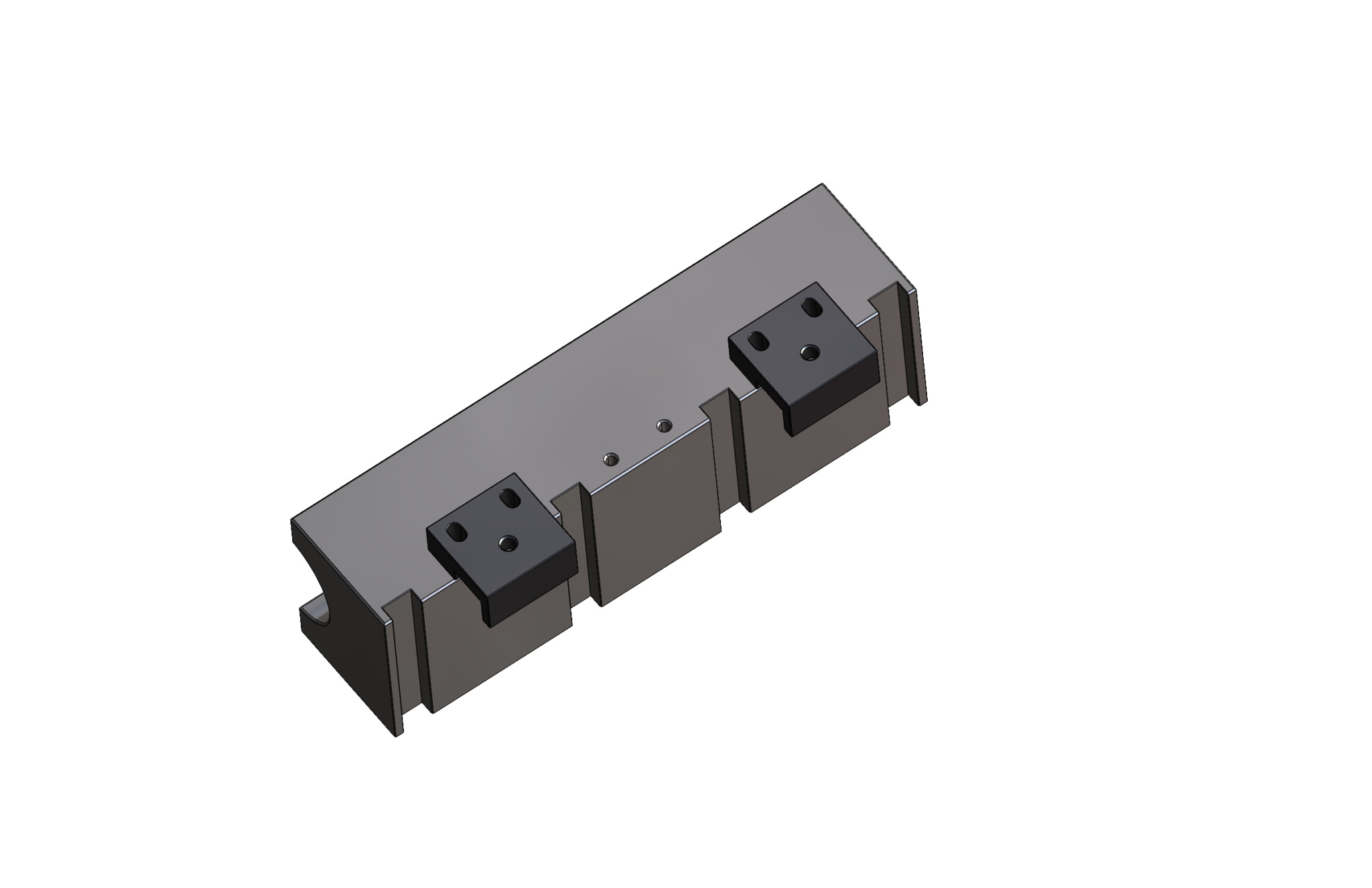

Pressure Die
Applies constant reactionary force to keep the tube tangent to the Bend Die, ensuring geometric accuracy

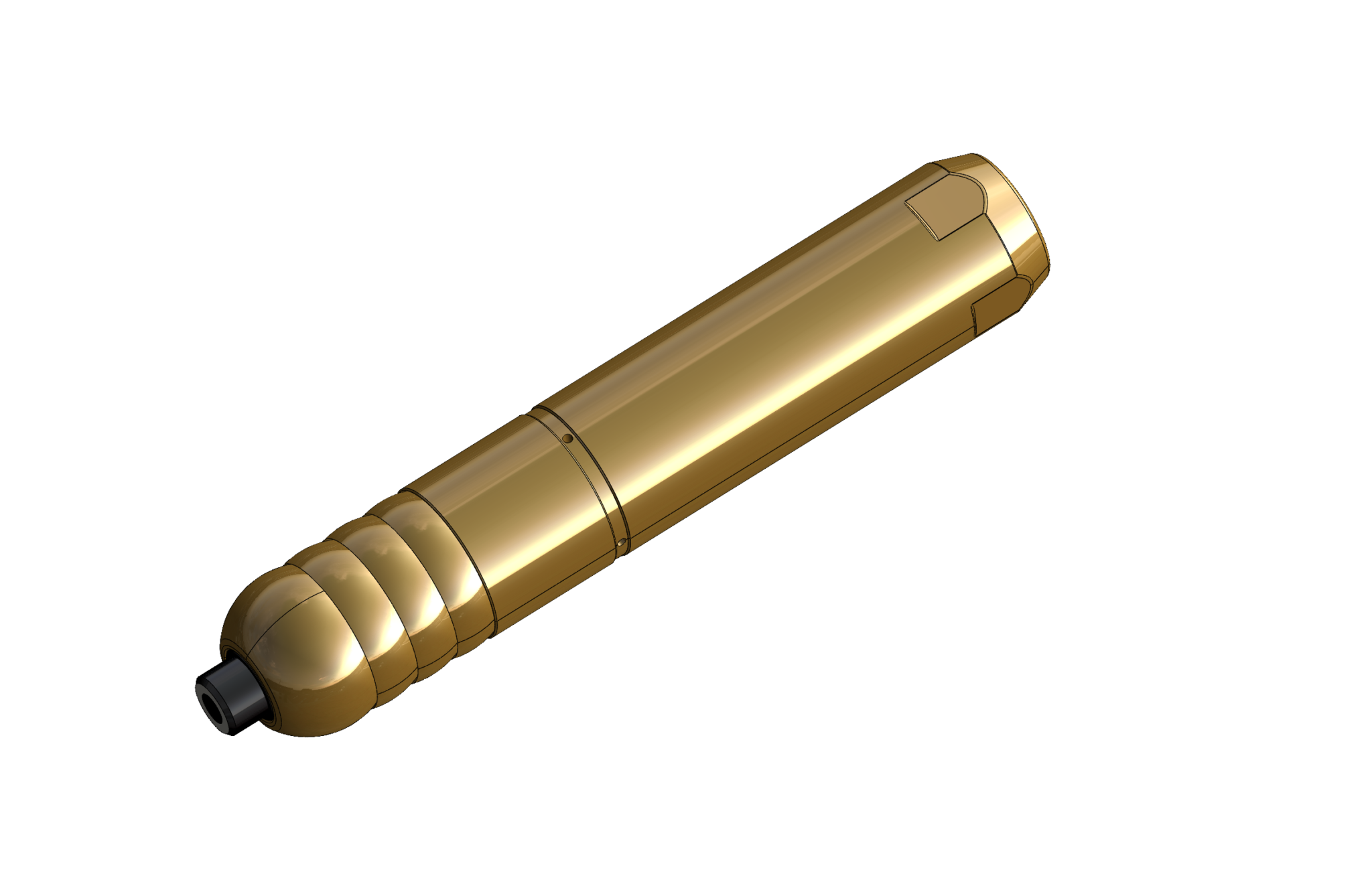

Mnadrel
Supports the tube from the inside. Maintains the tube’s circular cross-section throughout the bend, ensuring minimal ovality.

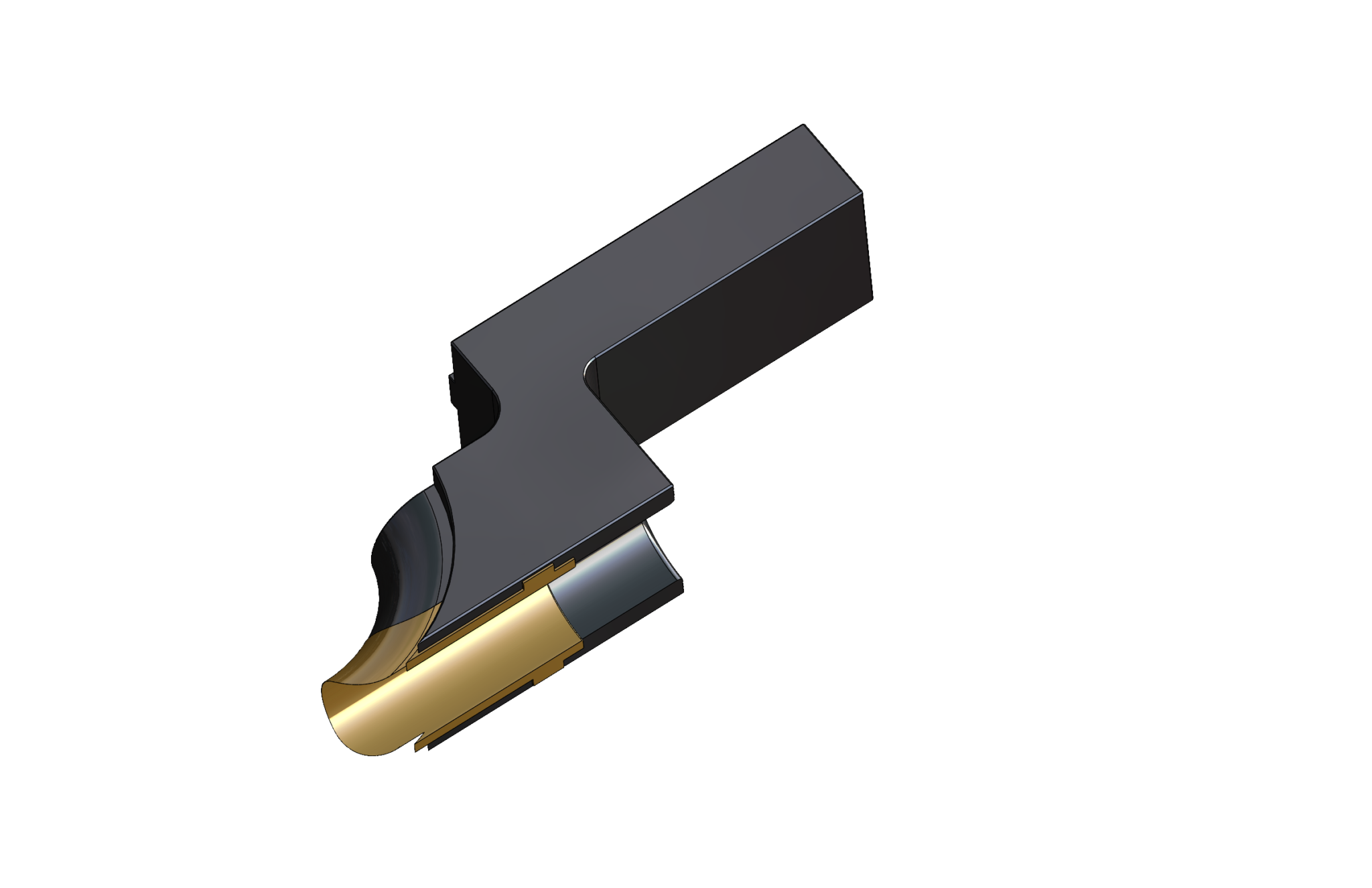

Wiper Die
Features a precision-machined feathered edge to stopping wrinkles.

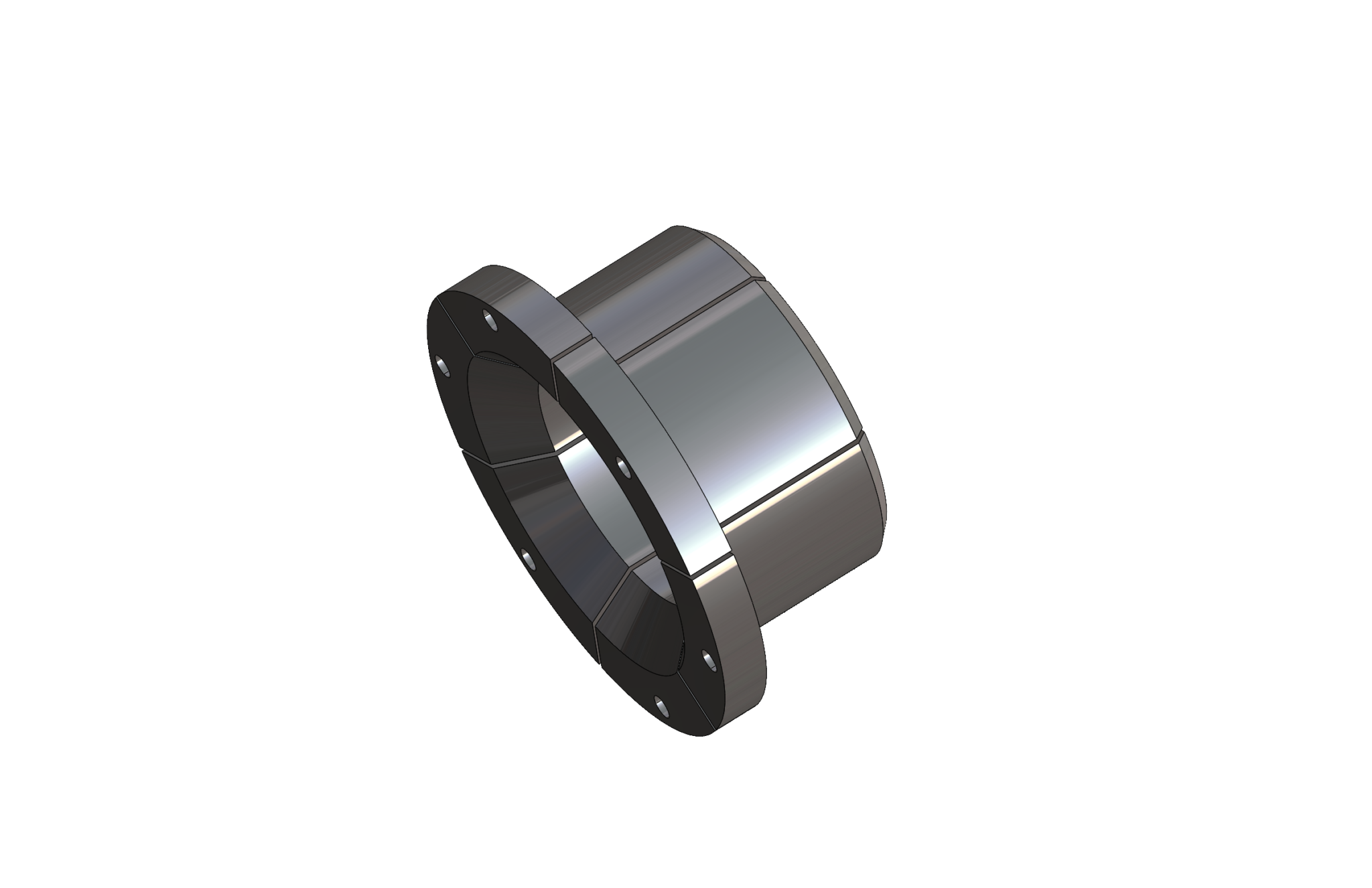

Gripper
Securely holds the tube to enable precise linear feeding and rotational positioning.
Bend Calculator
Bend Specs
Logic
Wall Factor
OD / WT
--
--
D of Bend
CLR / OD
--
--
Required Tooling
Awaiting Inputs...
Configuration
--
Engineering Note
CLR < Tube OD
